Continuation of the popular course "Basic Electronics". Set includes items in electronic form, necessary to perform the tasks described on our website Forbot.pl. Included are, in particular, the transmitter and IR-receiver, a comparator, a rectifier diode, Zener diode, micro servo, voltage system and AA batteries, along with container and many other elements. All packed in a handy box.
The kit also includes a unique code, by which you can, in particular:
- confirm the originality of the product
- receive information about the latest news and updates on the course
- in the future, get access to new content and quick help on the forum.
Create an object sensor, charger for phone, driver for servo modeling and much more! All necessary data are given in articles available on FORBOT.pl – a bit of theory, a large dose of practice, along with photos and illustrations.
The course about the basics of electronics based on the elements of this set is on the Forbot.pl. In our offer you will find also other sets to which lessons are conducted on this portal.
The outline of the course
The course was divided into 12 parts, which will be published regularly during the coming weeks. The frequency of the publications depends on Your participation and the number of comments.
All packed in a convenient chest. The set includes a pencil with the logo of the website Forbot.pl.
Recommended application – not included
In addition, we recommend that you also set the pocket "cheat sheets", which summarizes the main details discussed during the course of electronics, level II.
The contents of the set
Set includes electronic components, thanks to which you will be able to perform in practice all the exercises. All parts are supplied in the sachets, which are placed in convenient, versatile chest.
|1||Basket for 4 AA batteries with switch and cover.|

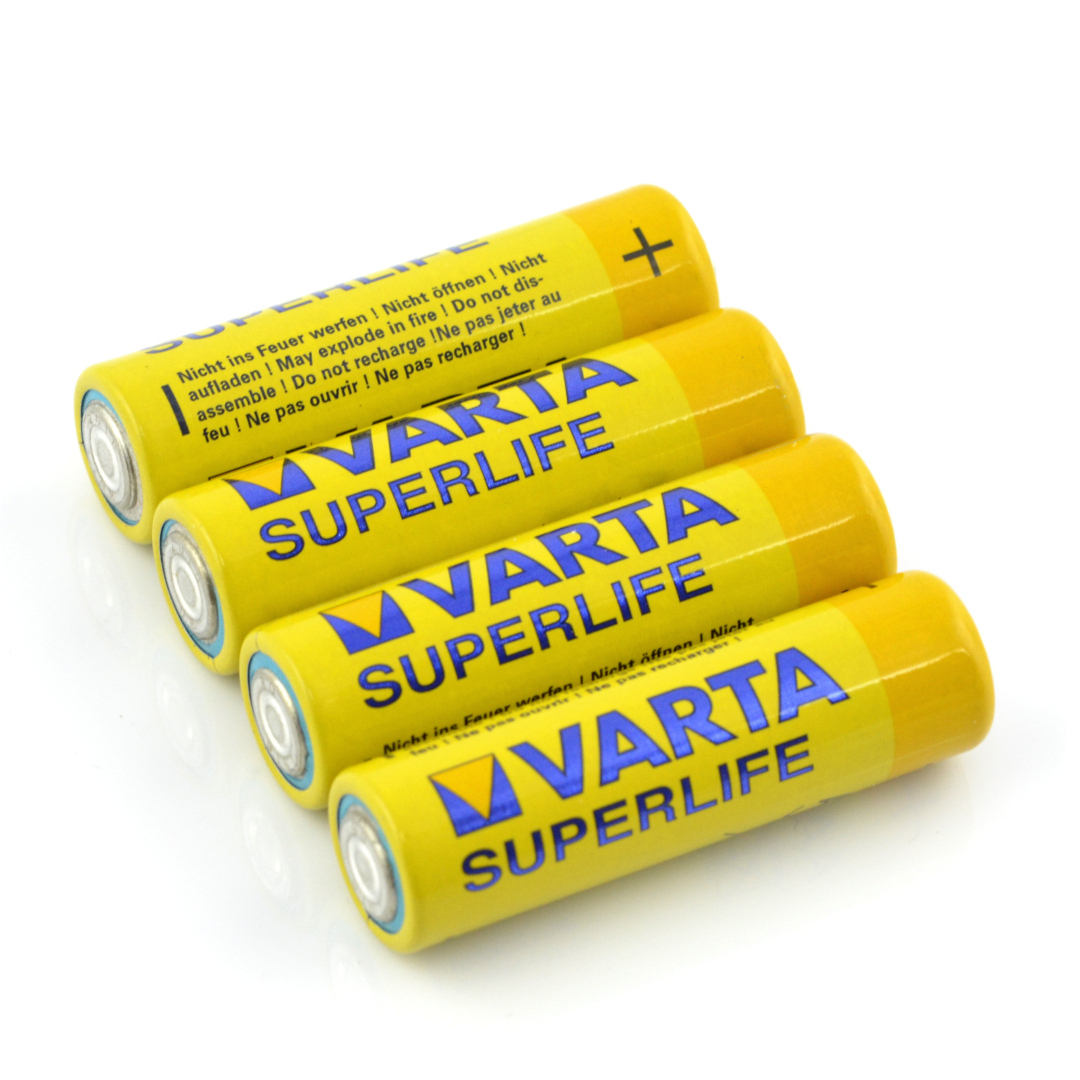

|2||Four AA batteries - popular large fingers.|
|3||Resistors 56 Ohm - 1/4 W through hole 30 pieces.|
|4||Resistors 470 Ohms - 1/4 W through hole 30 pieces.|
|5|| ||Resistors of 1 MOhm - 1/4 W through hole 30 pieces.|

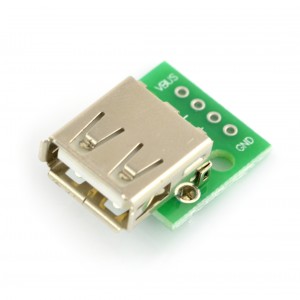

|6||USB connector to the Breadboard with soldered connectors.|
|7||IR receiver TSOP31236 - operating at a frequency of 36 kHz.|

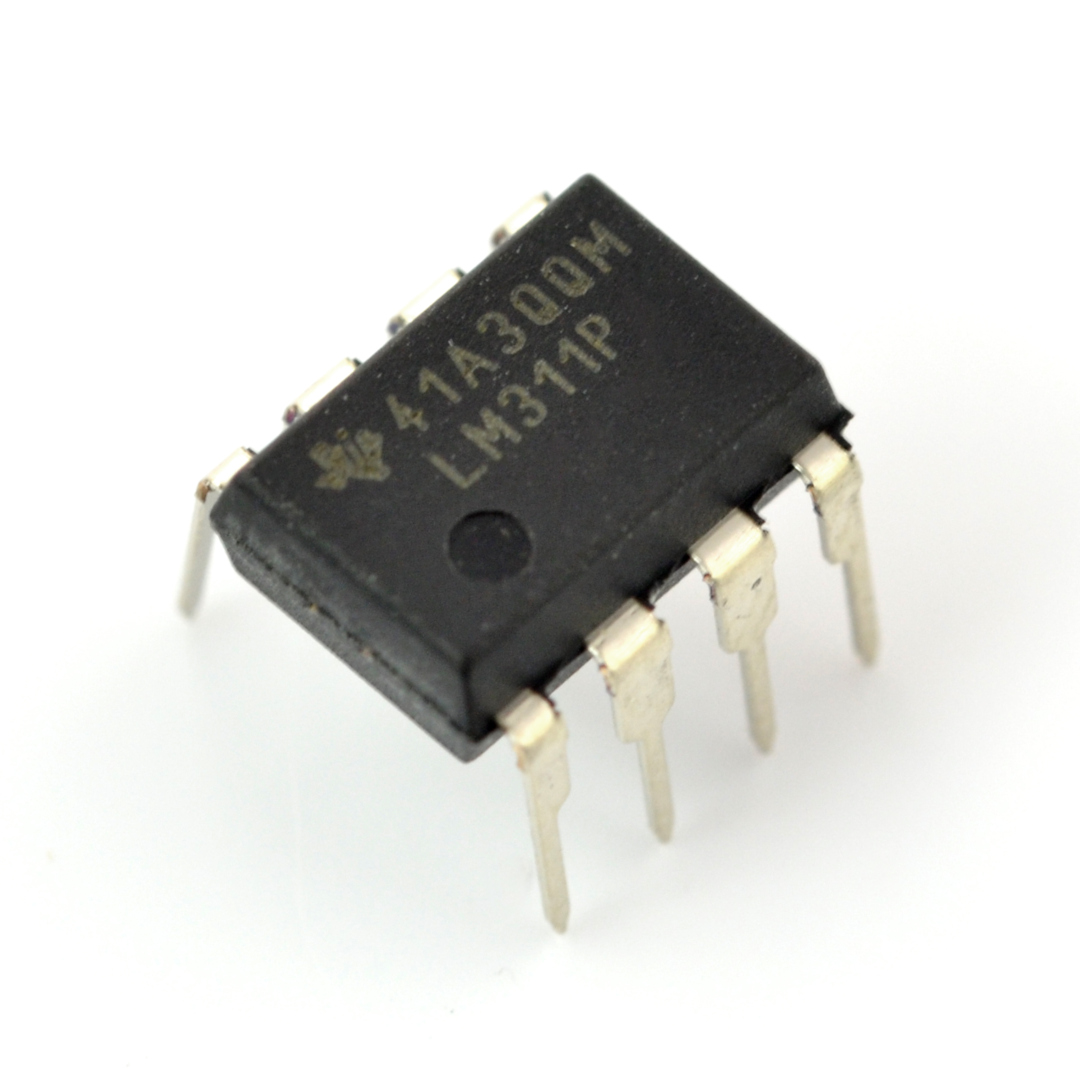

|8||The single-channel comparator LM311 in housing THT.|
|9||Button of tact switch type, suitable for the holes of the breadboard|
|10||Phototransistor L-53P3C in the housing 5 mm with the maximum sensitivity to waves at a frequency of 940 nm.|
|11||IR transmitter LIRED3B in the housing 3 mm, and emits the wave with length of 940 nm.|
|12||Led 5 mm multi-color RGB with shared anode.|
|13||Photoresistor 5-10 kΩ GL5616 - a simple light intensity sensor.|
|14||Servo, type micro - a simple engine with built-in system controlled with frequency of 50 Hz. The pivoting angle of horn is about 160 degrees. The appearance of servo may vary from photo depending on the batch of the set.|
|15||Buzzer FY248 23mm 3-18V in the case - a simple sound generator.|
|16||Contact magnetic reed switch - short-circuits contacts when approaching the magnet (included).|
|17||Universal time system NE555 in THT housing.|
|18||Converter step-up/step-down - S7V7F5 5V 1A with soldered connectors.|
|19||The source of voltage reference, LM385Z-2.5 is 2.5 V.|
|20||Ferrite magnet Y30 - 20x3mm - for a set with magnetic reed switch.|
|21||NTC thermistor 110 47kΩ 5% - a simple temperature sensor.|
|22||Bipolar transistor NPN Darlington MPSA29 100 V / 0.8 A|
|23||Rectifier diode 1N4148 - 10 pcs.|
|24||The monolithic capacitor 10nF/50V - 10 pcs.|
|25||The monolithic capacitor 470nF/63V 10 PCs|
|26||Zener diode 0.5 W 3.3 V - 10 pcs.|

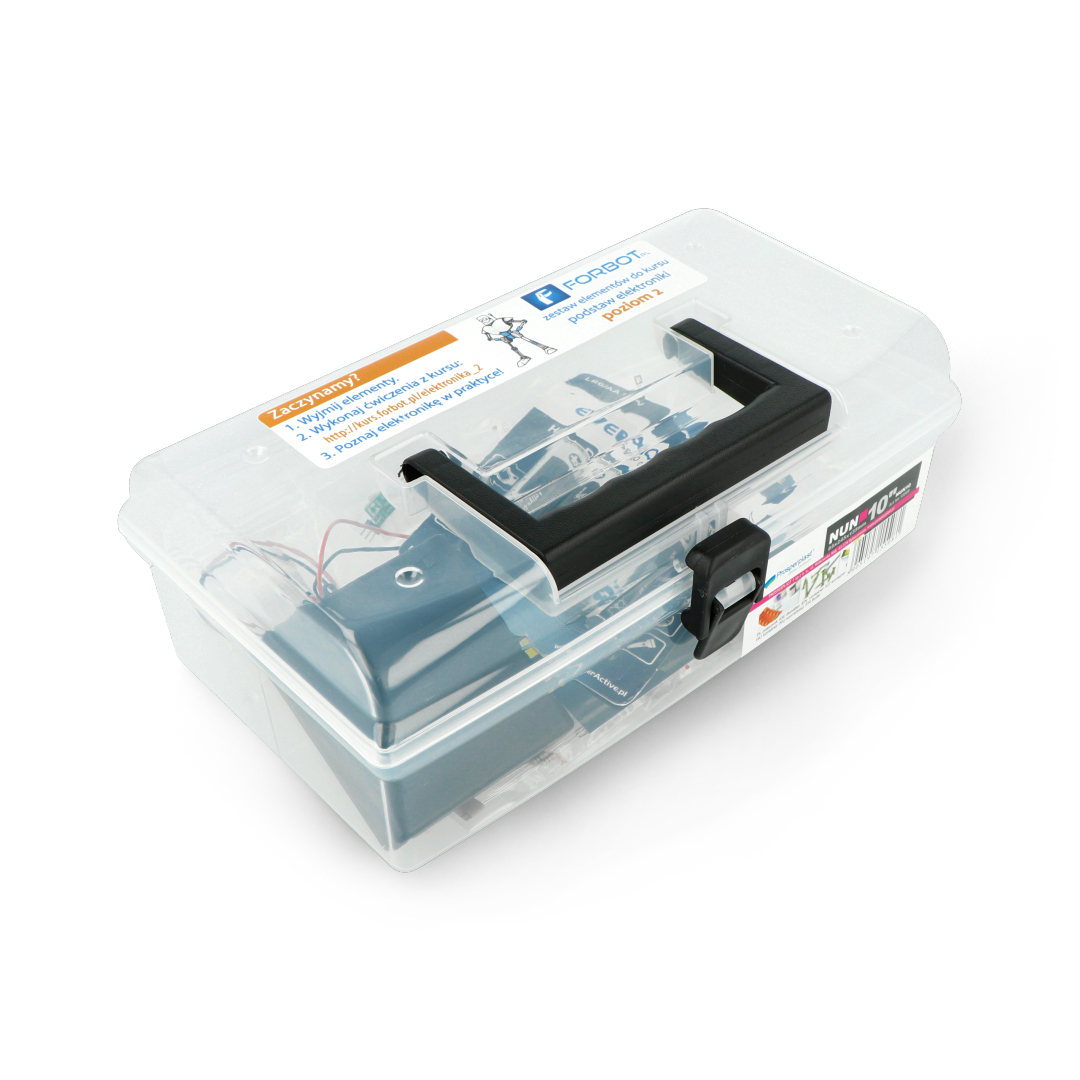

|27||Chest for carrying items of kit.|
